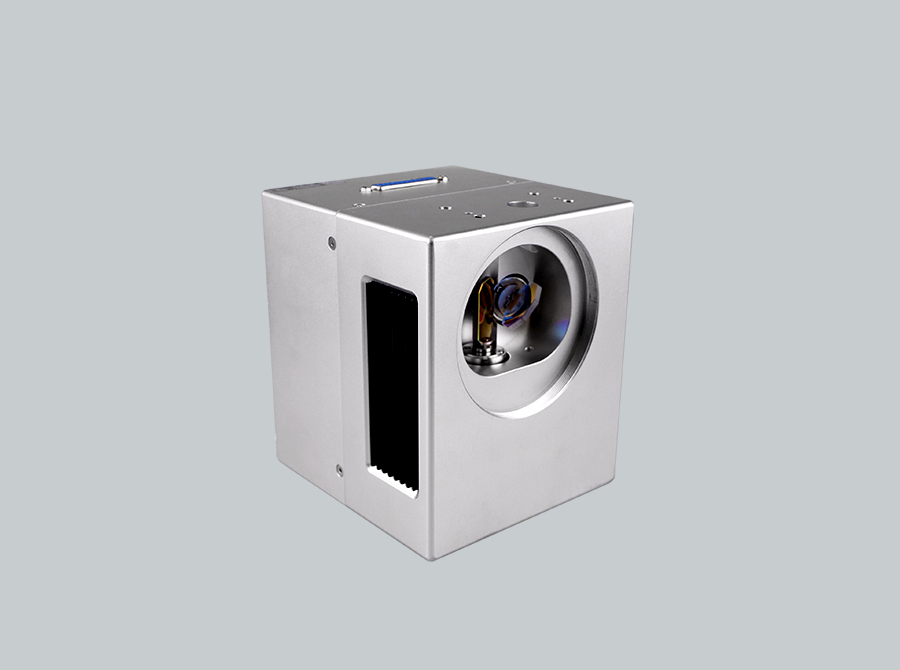

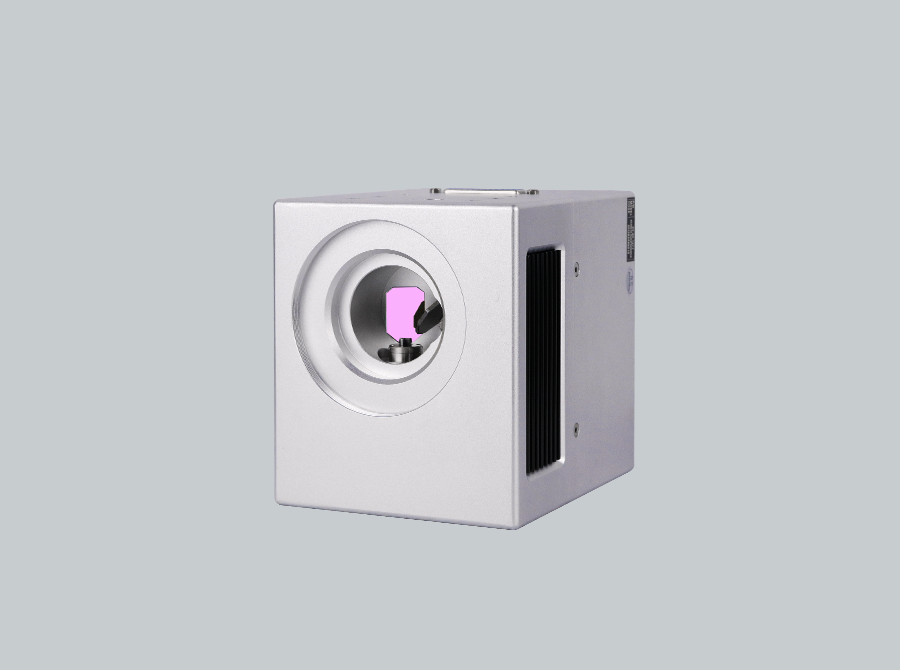

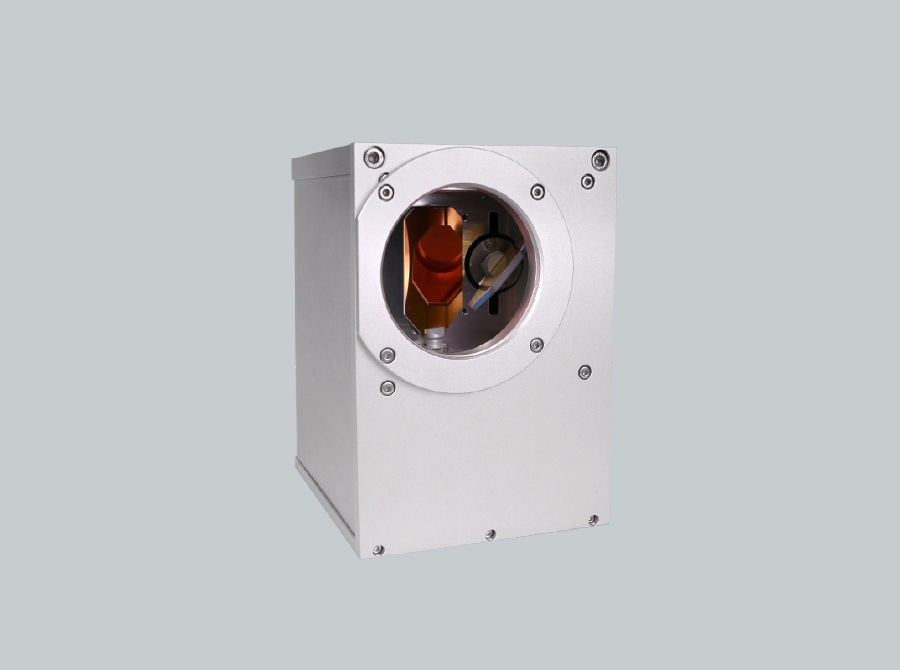

光電振鏡方頭

產品特點 1.配置豐富，7-50mm孔徑可選，各種鍍膜可選；
2.優選振鏡鏡片，鍍膜多樣，平整度好，損傷閾值高；
3.優秀光電編碼器性能，線性度高，漂移低；
4.豐富的驅動板調試經驗，一致性高，性能穩定；
5.嚴苛的出廠檢測標準，故障率低。

了解更多

Ultrascan I模擬振鏡產品型號覆蓋全面，適合對性價比要求高或替代進口同類產品的客戶。如高精度打標，精密切割，精密微加工等應用。

Ultrascan II模擬振鏡產品型號覆蓋全面，適合于對速度要求高的客戶。如高速飛行打標，精密打標，精密微加工，SLA，極耳切割，激光清洗等應用。

UltraScan10	精密打標 Precision marking	飛行打標Marking-on-the-fly	FPC 及SLA 應用FPC and SLA applications
入口光斑Input Beam Aperture (mm)	10	10	10
光柱位移Beam Displacement (mm)	12.54	12.54	12.54
跟隨誤差Tracking Error (ms)	0.18	0.14	0.16
重復精度Repeatability (μrad)	＜2	＜3	＜2
零位漂移Offset Drift (μrad/K)	＜15	＜15	＜15
增益漂移Gain Drift (ppm/K)	＜80	＜80	＜80
8小時以上漂移Long-term drift over 8 hours (mrad)	＜0.3	＜0.4	＜0.15
1%全行程1% of full scale (ms)	0.40	0.30	0.35
10%全行程10% of full scale (ms)	1.20	1.00	1.10
定位速度Positioning Speed (m/s)	10.0	20.0	15.0
掃描角度Typical Scan Angle (°)	±12.5	±12.5	±12.5
增益誤差Gain Error (mrad)	<5	<5	<5
零位誤差Zero Offset (mrad)	<5	<5	<5
非線性度Nonlinearity (%)	<0.4	<0.4	<0.4
電源要求Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
數字接口Digital Interface	XY2-100	XY2-100	XY2-100
工作溫度Operation Temperature (℃)	25±10	25±10	25±10
重量Weight (kg)	1.9	1.9	1.9

UltraScan	UltraScan7	UltraScan14	UltraScan20	UltraScan30	UltraScan50
入口光斑Input Beam Aperture (mm)	7	14	20	30	50
光柱位移Beam Displacement (mm)	9.77	16.42	25.25	35.61	62.25
跟隨誤差Tracking Error (ms)	0.15	0.23	0.45	0.70	1
重復精度Repeatability (μrad)	＜2	＜2	＜2	＜2	＜2
零位漂移Offset Drift (μrad/K)	＜20	＜15	＜15	＜15	＜15
增益漂移Gain Drift (ppm/K)	＜100	＜80	＜80	＜80	＜80
8小時以上漂移Long-term drift over 8 hours (mrad)	＜0.4	＜0.3	＜0.3	＜0.3	＜0.3
1%全行程1% of full scale (ms)	0.22	0.65	0.80	1.20	1.5
10%全行程10% of full scale (ms)	0.8	1.60	2.50	4.50	6.5
定位速度Positioning Speed (m/s)	25	10.0	5.0	3.0	1
掃描角度Typical Scan Angle (°)	±12.5	±12.5	±12.5	±12.5	±12.5
增益誤差Gain Error (mrad)	<5	<5	<5	<5	<5
零位誤差Zero Offset (mrad)	<5	<5	<5	<5	<5
非線性度Nonlinearity (%)	<0.4	<0.4	<0.4	<0.4	<0.4
電源要求 Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
數字接口 Digital Interface	XY2-100	XY2-100	XY2-100	XY2-100	XY2-100
工作溫度Operation Temperature (℃)	25±10	25±10	25±10	25±10	25±10
重量Weight (kg)	1.6	2.3	5.0	5.2	8.8

UltraScan II	UltraScan II 10	UltraScan II 14	UltraScan II 20	UltraScan II 30
入口光斑Input Beam Aperture (mm)	10	14	20	30
光柱位移Beam Displacement (mm)	12.54	16.42	25.25	35.53
跟隨誤差Tracking Error (ms)	0.12	0.15	0.35	0.6
重復精度Repeatability (μrad)	＜2	＜2	＜2	＜2
零位漂移Offset Drift (μrad/K)	＜12	＜12	＜12	＜12
增益漂移Gain Drift (ppm/K)	＜50	＜50	＜50	＜50
8小時以上漂移Long-term drift over 8 hours (mrad)	＜0.15	＜0.15	＜0.15	＜0.15
1%全行程1% of full scale (ms)	0.30	0.35	0.70	1.10
10%全行程10% of full scale (ms)	0.8	0.90	2.40	4.40
定位速度Positioning Speed (m/s)	18	14.0	6.0	4.0
掃描角度Typical Scan Angle (°)	±12.5	±12.5	±12.5	±12.5
增益誤差Gain Error (mrad)	<5	<5	<5	<5
零位誤差Zero Offset (mrad)	<5	<5	<5	<5
非線性度Nonlinearity (%)	<0.4	<0.4	<0.4	<0.4
電源要求 Power Requirements	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A	±15VDC, ≥3A
數字接口 Digital Interface	XY2-100	XY2-100	XY2-100	XY2-100
工作溫度Operation Temperature (℃)	25±10	25±10	25±10	25±10
重量Weight (kg)	1.9	2.3	5.0	5.2
